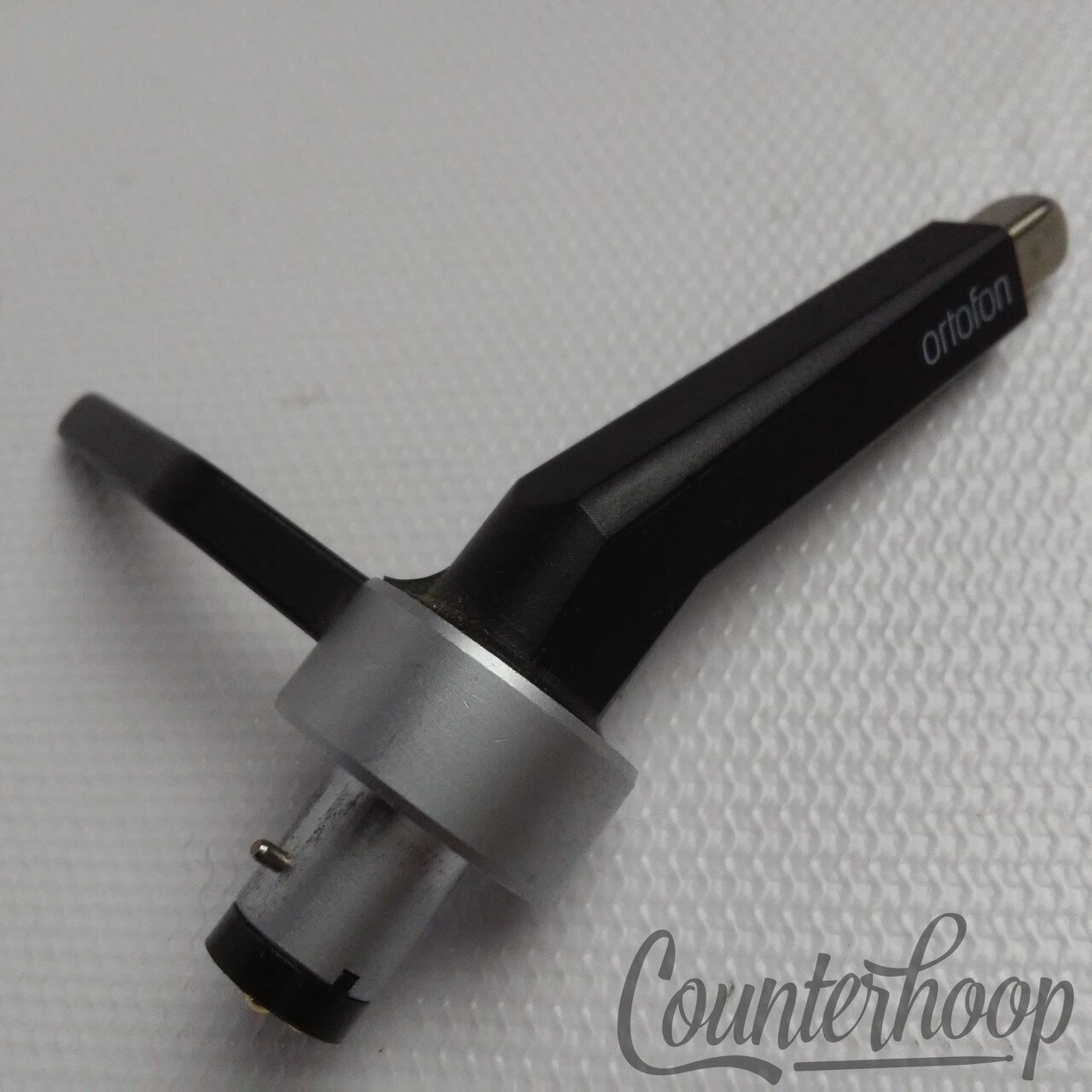

Ortofon Concorde Cartridge Black DJ Scratch Turntable Turntablism*
This one has moved on. Ask us — we may have, or can source, its sibling.
Description
The Ortofon Concorde is a general purpose turntable cartridge for scratch and back cueing, mounted with a spherical diamond
It achieves an output of 5
0 mV
Several Ortofon technologies make it possible to realize high sound quality and low record wear at the high tracking forces that are necessary in disco environments
One of the best cartridges for hip hop dj's with accurate playback and durability to scratch records
US Shipping is $11.95 with 1-3 Day Delivery
International Airmail is $36.95
Condition Description: EXC - Cartridge is in excellent condition, very clean with minimal signs of use. Just needs a needle to work perfectly
Technical Info:
Output voltage at 1000Hz, 5cm/sec. - 5 mV Channel balance at 1kHz - 1,5 dB Channel separation at 1kHz - 20 dB Channel separation at 15 kHz - 15 dB Frequency range at -3dB - 20-20.000 Hz Frequency response - 20-18.000 Hz +3/-2 dB Tracking ability at 315 Hz at recommmended tracking force - 70 ��m Compliance, dynamic lateral - 7 ��m/m N Stylus type - Spherical Stylus tip radius - R 18 ��m Tracking force range - 3,0-5,0 g (30-50 mN) Tracking force recommended - 4,0 g (40 mN) Tracking angle - 20�� Internal impedance, DC resistance - 750 Ohm Internal inductance - 450 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 200-600 pF Concorde weight - 18,5 g OM cartridge weight - 5,0 g Replacement stylus unit - Pro or Pro S
