Mackie 32 Channel Mixer-Professional Studio 32x8x2 8 Bus Analog Console+Roadie

Description

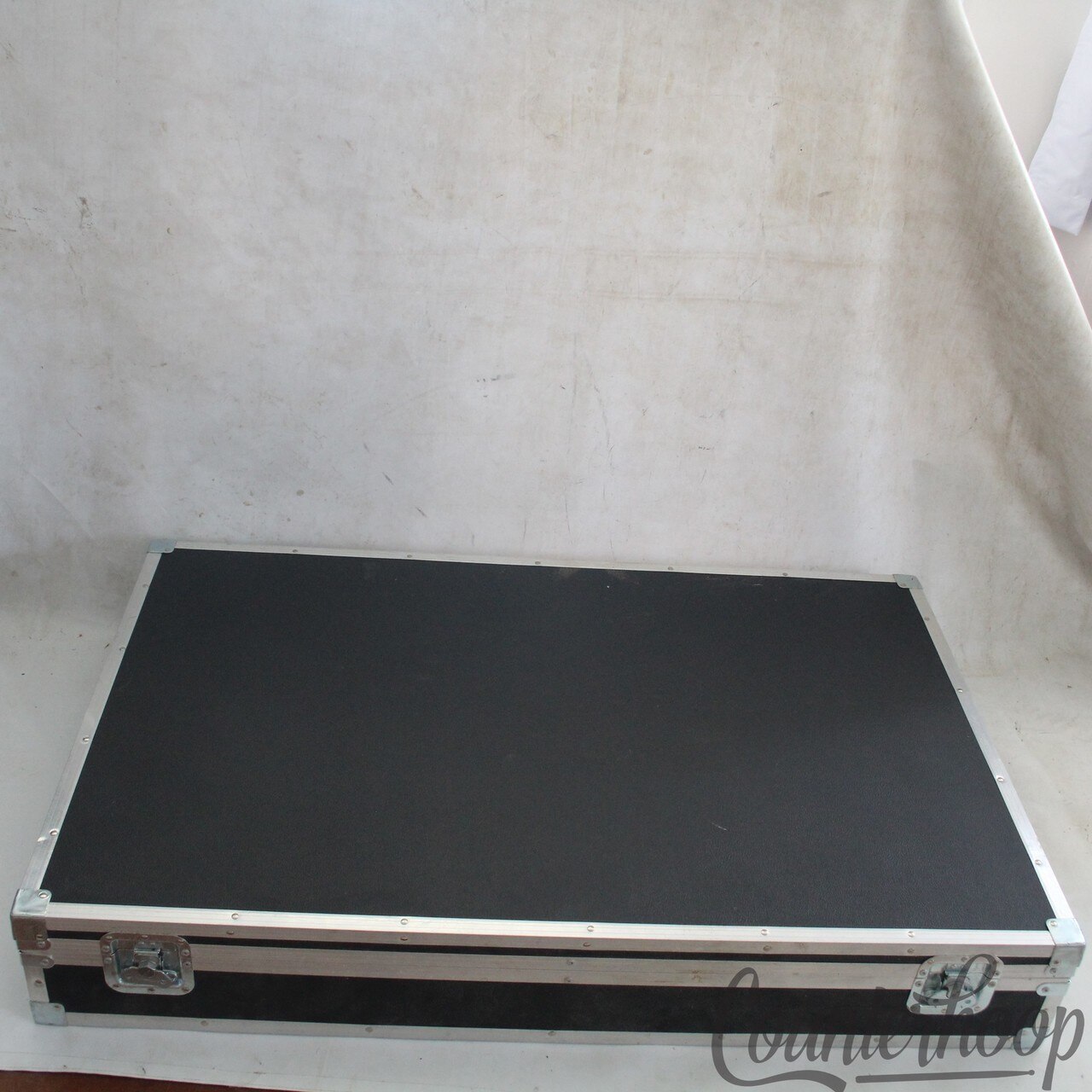

Mackie 32 Channel Mixer- gold standard of mixers + Custom Roadie Hard Shell Flight Case

32-Channel 8-Bus Analog Recording Console

Mackie's ultra-quiet, high headroom mic preamps on every channel (with phantom power for use with condenser mics)

Loads of outputs for easy multitracking

True 8-bus operation

100mm log-taper faders for consistently smooth fades

EQ: Full parametric Hi-Mid w/separate band center & "Q" controls, swept Lo-Mid, and Hi & Lo shelving EQ

Low Cut Filter (18dB/octave @ 75Hz) on every channel

6 stereo (2 assignable) Aux Returns

Extensive routing capabilities

Mackie Analog 8���Bus Series mixers are the most successful in-line recording consoles ever made. They have tracked more platinum albums and major motion picture soundtracks than any other mixers in their class. Since its release in 1993, the 8���Bus Series has consistently set the standard for both affordability and feature set in 8-bus consoles. They have never been equaled for sound quality and are legendary for their performance and reliability.

Ultra-quiet and flexible, the Mackie 8���Bus is the definitive 8���bus console, used by more artists, groups, composers, and production facilities than any other brand. Designed to eliminate the last barrier between you and your creativity-the 32���8 mixer can hold its own against significantly higher priced consoles.

The 8���Bus Series' Mix B feature makes foldback monitor mixing (aka monitoring tracks from your recorder) a breeze. Other common uses include mix creation from tape while recording, feeds for additional studio headphone mixes, additional quick live mixdowns and recordings, etc. And dedicated talkback and dual phones level controls make communicating with the talent a snap. The Mix B section also features a Split switch, which splits the channel EQ between Mix B and the main channel signal. This can be really handy when you need to tweak the Mix B signal to your liking.

USA Shipping (48 States) is $95

International Airmail is $395

Canada is $195, Australia is $655

Condition Description: EXC - mixer is in excellent condition clean with no damages, works 100% no issues. Includes custom flight case in excellent condition

More Info:  TECHNICAL SPECIFICATIONS: 8���Bus Specifications  NoiseMeasured 20Hz to 20kHz bandwidth Tape Returns selected, no EQ, Channel Pans alternating L/R, L/R. "Faders up" refers to Unity gain, 0dBu position.Output Noise: Main L/R or Submaster Channels AssignedChannel FadersNoiseMaster fader down --

--

101dBu Master fader up 24

down (mix noise)

-90dBu Master fader up 24

up

-86dBu +4dBu operating level signal-to-noise ratio >90dB Total Harmonic Distortion1kHz @ + 14dBu measured 20Hz-20kHz, mic input, 1 channel assignedDirect output 0.0013% typical L/R Mix output 0.0014% typical Submaster output 0.0015% typical Crosstalk1kHz measured relative to 0dBu, measured 20Hz to 20kHz.Line In to Adjacent Channel -91dBu  L/R Mix OutputSubmaster OutputChannel Fader down -95dBu

-96dBu Channel muted -95dBu

-96dBu Channel un-assigned -91dBu

-95dBu Adjacent Channel assigned -92dBu

-94dBu Panpot attenuation -87dBu

-87dBu Frequency Response20Hz to 60kHz, any input to any output +0/-1dB 10Hz to 120kHz, any input to any output +0dB/-3dB E.I.N.Mic input, 150 ohm termination, 20Hz-20kHz 129.5dBm Mic input, shorted, 20Hz-20kHz -136dBV C.M.R.R.Mic input, max gain, 1kHz 83dB Maximum LevelsMic input +14dBu All other inputs +22dBu L/R Mix balanced output +28dBu All other outputs +22dBu ImpedancesMicrophone input 1.5 kohms Channel insert return 2.5 kohms All other inputs 10 kohms or greater All outputs 120 ohms Equalization TypeRangeBoost/CutHi-Mid full parametric (Q) variable from 1/12 to 3 oct.

500Hz-18kHz

��15dB Lo Mid swept

45Hz-3kHz

��15dB Hi shelving

12kHz

��15dB Lo shelving

80Hz

��15dB Lo Cut HP filter

75Hz

18dB/oct. slope (Tchebechev) 8���Bus Power SupplyPower Consumption 400 watts Output +18V

3.5A

-18V

3.5A

+48V

250MA

+12V

1.5A

+5V

3A
